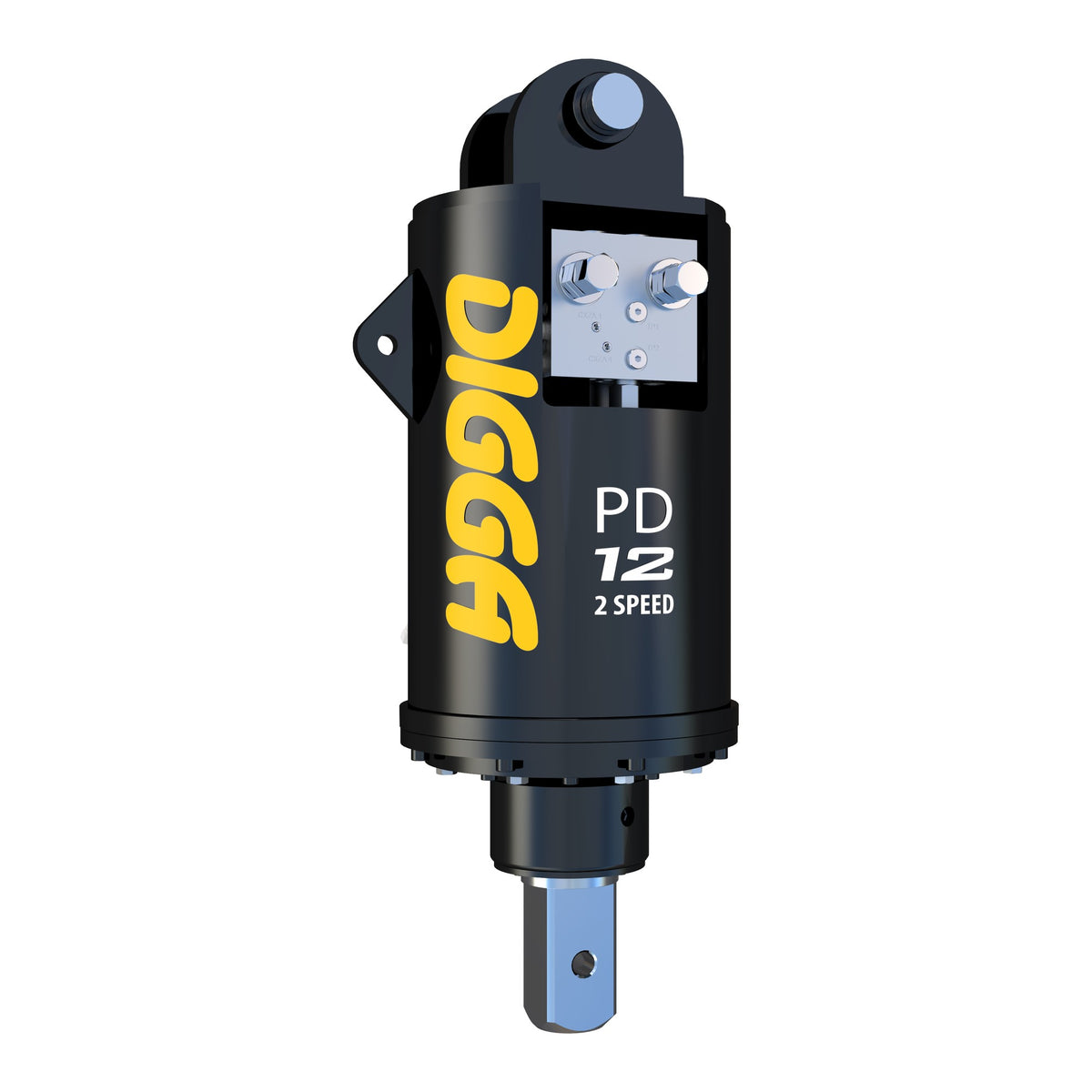

About the PDT12
The Digga PDT12 is a 2-speed hydraulic auger drive for high flow excavators up to 15 tonnes. It runs on 40 to 180 L/min and gives up to 11,646 Nm of torque @ 240 Bar, with augers up to 1,600 mm in earth and 1,200 mm in clay.
- Two speeds: high speed for smaller holes, and a slower, higher-torque speed for bigger ones.
- Choose a cradle or double pin hitch, or no frame. Packages come with hoses, couplers and linkage.
- 75 mm square output shaft for Digga 8 Series augers. HALO alignment is available.
- Your machine needs a case drain line. A 3 m power lead and 2-pin connector run the speed change, and the 2-speed controller is sold separately.
Warranty is 5 years on the gearbox and 3 years on the motor. Tell us your machine make and model when you order, and we'll check it fits before anything is ordered.
Digga · Auger Drive
Digga PDT12 2-Speed Auger Drive
Digga PDT12 2-speed high flow auger drive for excavators up to 15 t. 40 to 180 L/min, 11,646 Nm @ 240 Bar, 8 Series augers. Free pickup QLD, NSW, VIC.
$14,443 inc GST
Digga code PDTH12-5-EMC
- Buying guide: Choosing an auger drive
- Buying guide: Choosing a hitch
Your machine
We check it fits before anything is ordered.
Most of our range is ready to ship. Some items are made to order when demand is high, so we confirm your date by email before anything is ordered. Need it urgently? Call or text 0434 721 356.
Freight to your door
or free pickup
We don't recognise that postcode. Check it, or ask for a freight quote.
Freight is priced on your whole order. If you add other items, the freight at checkout may change.
If freight to you costs more, we'll contact you before finalising the order.
Or use your own freight company (BYO), free at checkout.
Free pickup from Digga in Yatala QLD, Wetherill Park NSW or Hallam VIC. Or free pickup from Digga in Yatala QLD, Wetherill Park NSW or Hallam VIC.
Build your drilling kit
Add augers and an extension to your PDT12
5% off augers and extensions bought with the drive
Your drive
Digga PDT12 2-Speed Auger Drive
Augers, up to 3
That's 3 augers, the most in one kit. Remove one to swap it.
Extension, optional
We don't list augers for this drive option yet. Tell us what you're drilling and we'll match them for you.
Specifications
Shaded rows change with the option you pick. Figures from Digga.
Suits
- Flow: 40 to 180 L/min
- Max pressure: 240 bar @ 150 L/min
- Case drain: Required
Before you order: tell us your machine make and model and your coupler type. We check it fits before anything is ordered.
Warranty
5 years gearbox, 3 years motor (Digga).
Suits
- Flow: 40 to 180 L/min
- Max pressure: 240 bar @ 150 L/min
- Case drain: Required
Specifications
About the PDT12
The Digga PDT12 is a 2-speed hydraulic auger drive for high flow excavators up to 15 tonnes. It runs on 40 to 180 L/min and gives up to 11,646 Nm of torque @ 240 Bar, with augers up to 1,600 mm in earth and 1,200 mm in clay.
- Two speeds: high speed for smaller holes, and a slower, higher-torque speed for bigger ones.
- Choose a cradle or double pin hitch, or no frame. Packages come with hoses, couplers and linkage.

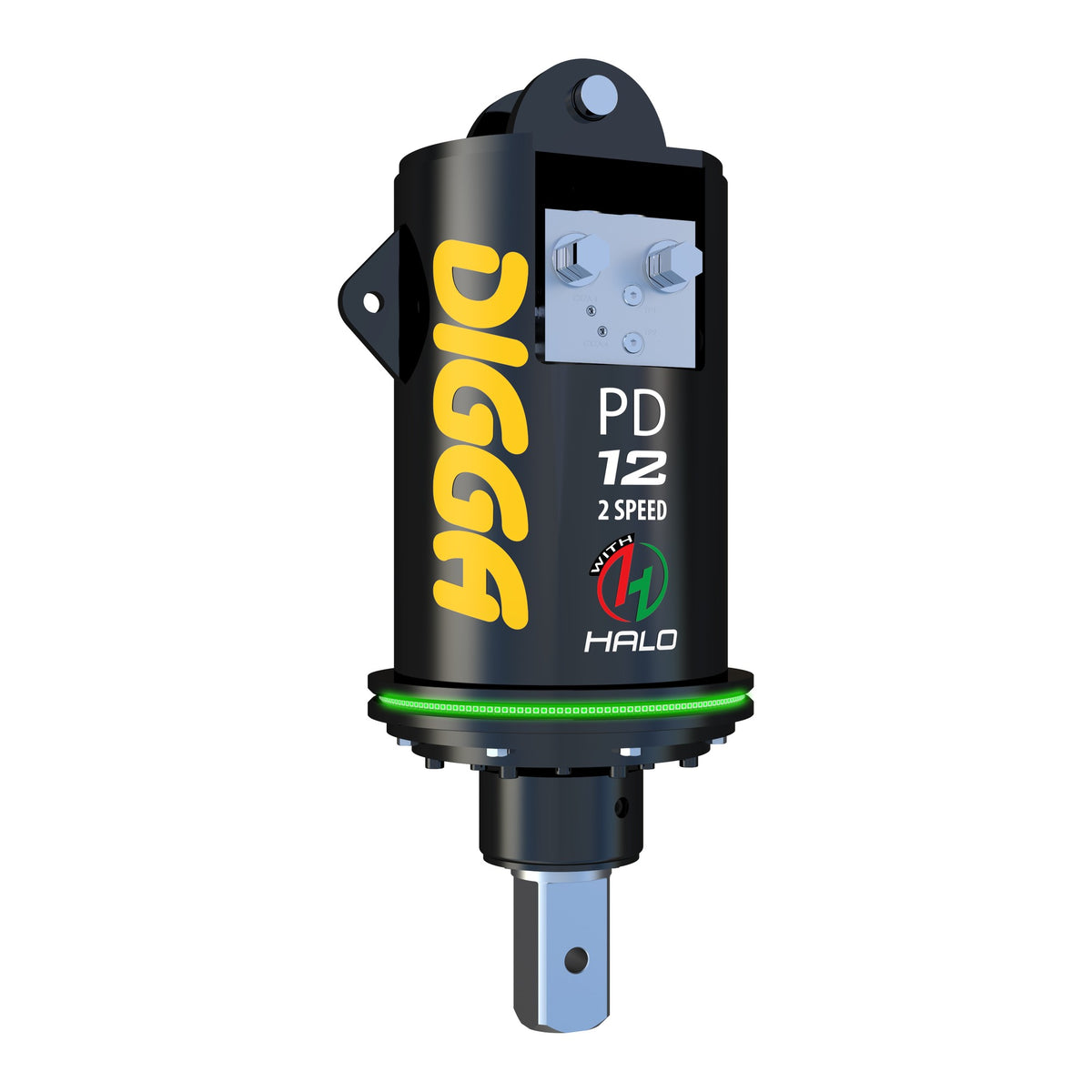

- 75 mm square output shaft for Digga 8 Series augers. HALO alignment is available.
- Your machine needs a case drain line. A 3 m power lead and 2-pin connector run the speed change, and the 2-speed controller is sold separately.
Warranty is 5 years on the gearbox and 3 years on the motor. Tell us your machine make and model when you order, and we'll check it fits before anything is ordered.
