Digga PDX2 Auger Drive Unit - 30-50 LPM

Digga PDX2 Auger Drive Unit - 30-50 LPM

Delivery Information

– 2-5 business days for products in stock that don’t require any customisation
– 5-10 business days for products that require a custom fitting to your machine type

Availability: In Stock
Wishlist Compare

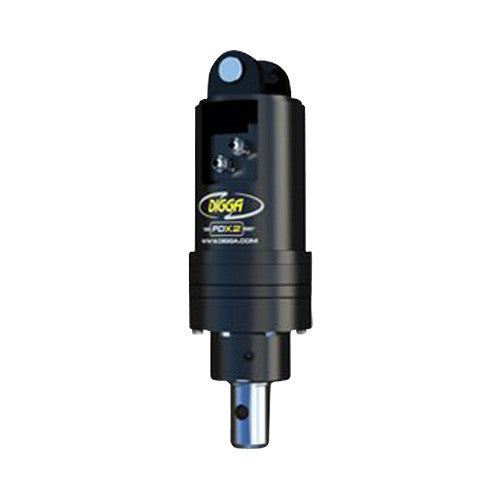

Digga's PDX2 auger drive unit and earth drill is ideally suited for mini excavators, micro excavators and small skid steer loaders with a flow between 30 to 50 lpm, this post hole digging unit is ideally used for drilling holes for fencing, tree planting, house foundations, and more.

Innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary auger drives are fitted with Digga / Eaton Bell motors specially designed for drilling and augering in most ground conditions.


  • 5 year gearbox warranty
  • 3 year motor warranty


  • PDX2 auger drive
  • Frame (skid steer) or hitch (excavator) to suit machine
  • Standard 2.2m hoses
  • ISO or flush face couplers



  • Micro Excavators- 750kg to 2t
  • Mini Excavators - 2t to 5t
  • Tractors
  • Truck Cranes / Telehandlers

*Output speed and torque information found in the "specifications" are theoretical. Speed and torque output are dependent on the overall system efficiencies associated with the prime movers hydraulic system. This document should be used for information and comparative purposes only. When determining criteria and application specific information, please contact us.

  • Quality made compact high torque and powerful Digga manufactured planteary gearbox
  • Australian made ensuring quality materials including the highest quality bearings and components
  • Integrated motor and output reduces size and weight of the drive, thus reducing potential leak points and number of parts
  • Top mounted hose ports with angled fittings allows the hoses out the top of the unit ensuring they won't get in the way
  • Two piece shaft isolates the planetary gears from excessive side load
  • Cutting edge design, highly efficient with less moving parts and the most compact design available on the market
  • Fitted with Digga / Eaton Bell geroler hydraulic motor
  • No case drain required
  • Lifetime shaft pull out warranty guaranteeing it will not fall out
  • Full range of shafts available upon request
  • Extreme duty shaft locking system
  • Drive unit will down the hole for greater digging depth
  • Low maintenance with 5 year gear box and 3 year motor warranty
Barcode # Does not apply
Brand Digga
Weight 45.0000kg
Width 0.187m
Height 0.557m
Length 0.187m
Motor 2K Eaton Bell
Standard Drive Shaft 65mm Round
Max Flow (LPM) 30-50
Max Power 25Kw (34HP)
RPM 49-82
Max Pressure (BAR) 125-240
Max Torque (Nm) @ 205 Bar 1994
Max Torque (Nm) @ 240 Bar 2331
Max Auger Diameter (Clay / Shale) 450mm
Max Auger Diameter (Earthl) 600mm
