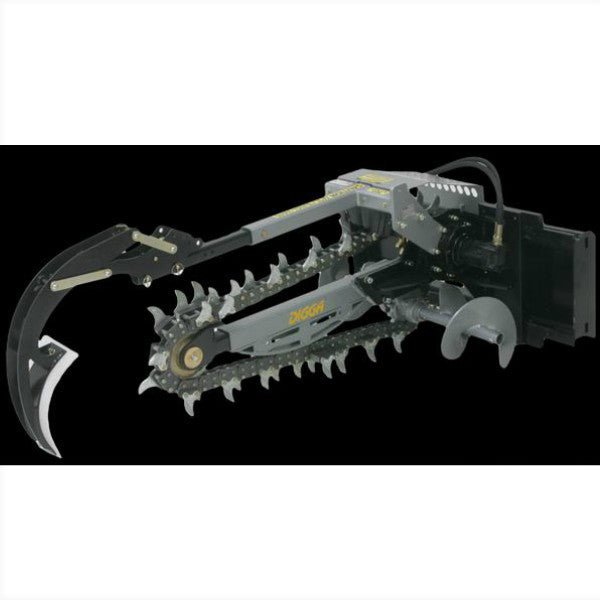

Digga 900mm Dig Hydrive Trencher - 1 5/8" Chain

Digga 900mm Dig Hydrive Trencher - 1 5/8" Chain

Get ready for some serious trenching with Digga's Hydrive range of trenchers. This 1200mm digging depth model with a wider cutting width is perfect for excavators, backhoes and telehandlers up to 8 tonne. Th... Read more

Delivery Information

– 2-5 business days for products in stock that don’t require any customisation
– 5-10 business days for products that require a custom fitting to your machine type

Availability: In Stock
$5,838.80
Wishlist Compare

Get ready for some serious trenching with Digga's Hydrive range of trenchers. This 1200mm digging depth model with a wider cutting width is perfect for excavators, backhoes and telehandlers up to 8 tonne. The Digga Hydrive trenchers are compact yet powerful and fitted with a quality Digga planetary drive and Eaton hydraulic motor.

A unique drive system positioning allows for more usable horse power providing greater efficiency. From pipe laying for irrigation, to underground power and communications, road repairs and general construction, this trencher will increase your machines productivey tenfold!

WARRANTY

  • 3 year gearbox warranty
  • 2 year motor warranty

PRICE INCLUDES

  • Hydrive trencher
  • Chain
  • Standard frame
  • Standard 2.2m hoses
  • ISO or flush face couplers

SUITABILITY

  • Skid steer loader: Standard flow
  • Skid steer loader: High flow
  • Backhoe
  • Excavator: 3.5 to 8 tonne
    • Head start crumber system allows you to start trenches with the crumber bar in the down position and saves time by not having to
      get off the machine.
    • Hydrive models offers both 900mm and 1200mm digging depth, a 300mm digging width with a 42mm chain.
    • Twin spoil augers for efficient spoil removal on both sides of the trench creating finely crumbed spoil for effective re-compaction and minimal ground disturbance.
    • Frame can be side-shifted for digging close to permanent structures.
    • Augers can be removed for close-up trenching to walls or fences.
    • 3 different chain options in cluding earth, combo and Diggatac.
    SKU HDT-1200
    Brand Digga
    Weight 165.0000kg
    Width 1.212m
    Height 0.802m
    Length 2.160m
    Cubic 1.554463m3
    Cutting Depth 1200mm
    Cutting Width (mm) 100 / 150 / 200 / 250 / 300
    Crumber Bar (Heavy Duty) 4" / 6" / 8" / 10" / 12"
    Recommended Flow (LPM) 50-80
    Motor Type 2K Eaton Bell
    Max Pressure (Do Not Exceed) 240 BAR @ 60 LPM
    Max Flow (Do Not Exceed) 75 LPM @ 200 BAR
    Max Continuous Power 25 KW (34 HP)
    Chain Type Earth / Combo / Diggatac
